Peel Adhesion
Description
The ChemInstruments AR-1000 Adhesion/ Release Tester performs adhesion and release tests on pressure sensitive adhesive laminate samples to ASTM, DIN, PSTC, TLMI, FINAT and AFERA standards.
The sample is peeled at a selected speed and at a chosen angle, which is usually 90 or 180°. A load cell measures the peel/release force and this is recorded in the data acquisition unit. The results are subsequently processed locally or in an external PC. The sensitivity of the test may be adjusted by changing the load cell.
Specification
| Speed | 30 to 3048 cm/min |
| Test angle | 90 to 180° |
| Load accuracy | ±0.1% load cell range |
| Data sampling rate | 400 points/second |
| Operating temperature | 0° - 70°C |

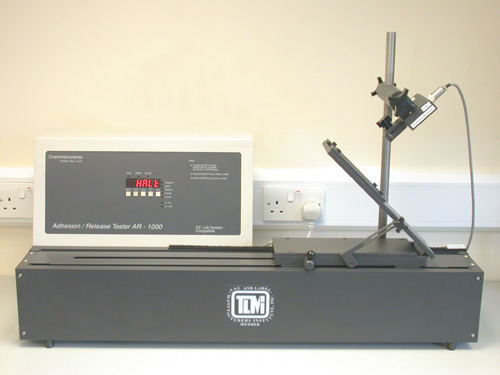

ChemInstruments AR-1000 Peel Tester
Standards
| ISO 29862:2018 GTF 6004 (AFERA 5001) (AFREA 4001) | Self adhesive tapes - Determination of peel adhesion properties |
| ASTM D3330/D3330M-04(2018) | Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape |
| BS EN 1939:2003 | Self adhesive tapes. Determination of peel adhesion properties |
| PSTC 101 05/07 (A, B, C, D, E and F) | International Standard for Peel Adhesion of Pressure Sensitive Tape |
| PSTC 4 10/03 | Relative Performance of Release Coatings |
| TLMI L-IA1 | 180° Peel Adhesion - Face Stock |
| TLMI L-IA2 | 180° Peel Adhesion - Release Liner |
| TLMI L-IA3 | Ramp Velocity High Speed Release |
| FINAT FTM 1 | Peel adhesion (180°) at 300mm per minute |
| FINAT FTM 2 | Peel adhesion (90°) at 300mm per minute |
| FINAT FTM 3 | Low speed release force |
| FINAT FTM 4 | High speed release force (10 - 300 m per minute) |
| FINAT FTM 5 | Resistance to elevated temperatures |
| FINAT FTM 6 | Resistance to ultra-violet light |
| FINAT FTM 10 | Quality of silicone coated substrates for self-adhesive laminates: release force (300 mm per minute) |
| FINAT FTM 11 | Quality of silicone coated substrates for self-adhesive laminates: subsequent adhesion |
